Poly Platforms Poly Trailers for Building and Road Work Applications

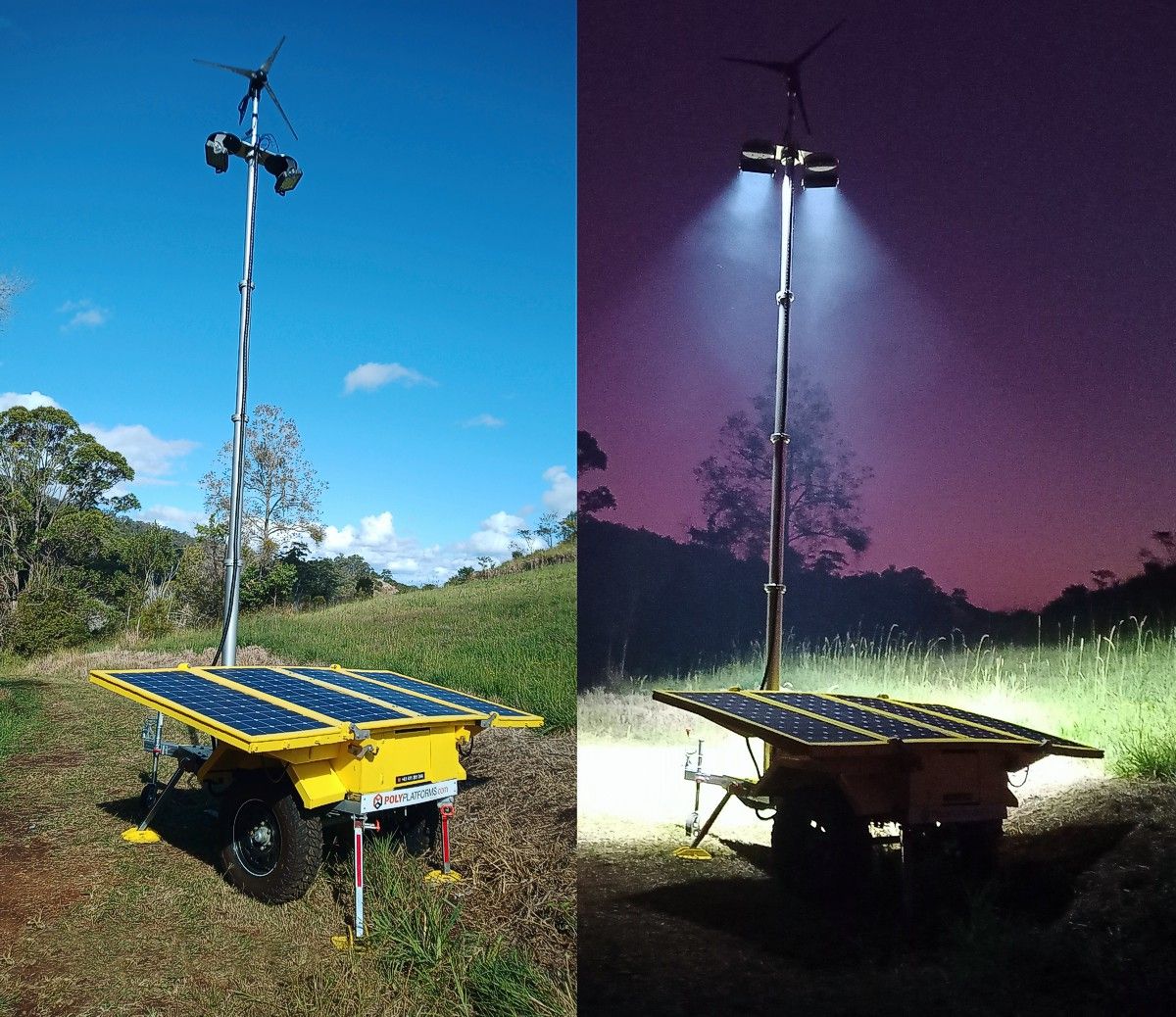

Poly Platforms Poly Trailers are configured to provide 24/7 security solutions for multiple small and large compounds containing road construction machinery and materials over a broad area, delivering a mobile, solar powered high end security camera solution (4K), capable of being able to pan tilt & zoom into specific areas of interest while recording all images onto an on board server.

The system can be viewed and controlled across 4g/3g mobile network as well as over 2.4/5Ghz Wi-Fi networks plus has GPS.

The system is powered by 2 custom-made flexible solar panels each producing 180Watts @ 24Volts which charge up to 8 x 200Amp hour batteries in a 24V array.

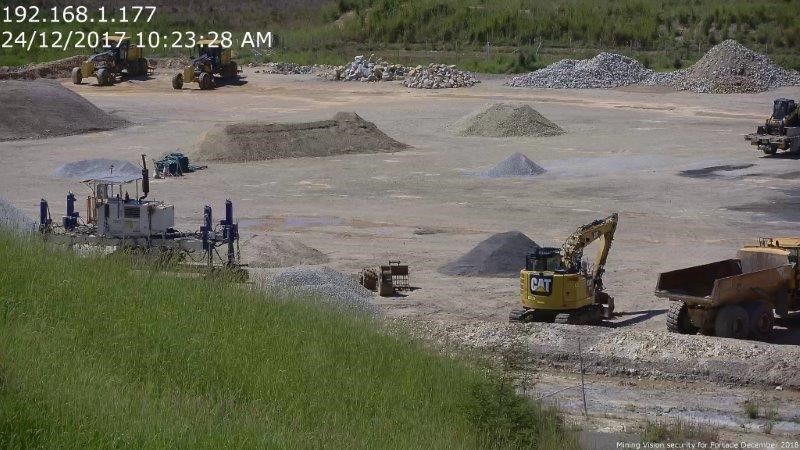

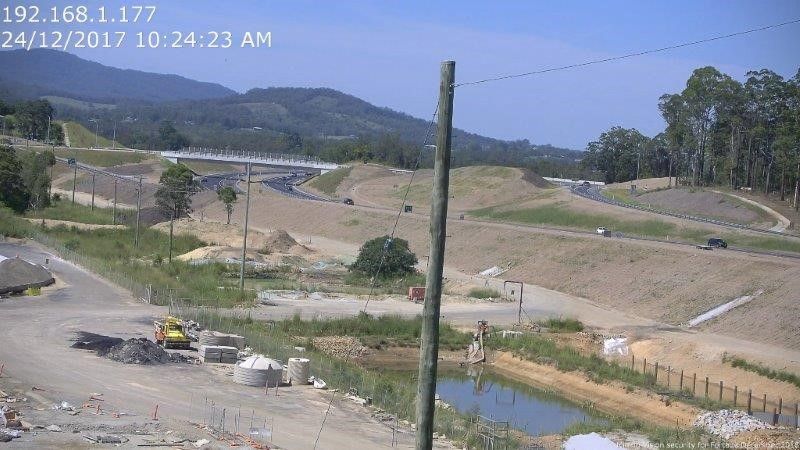

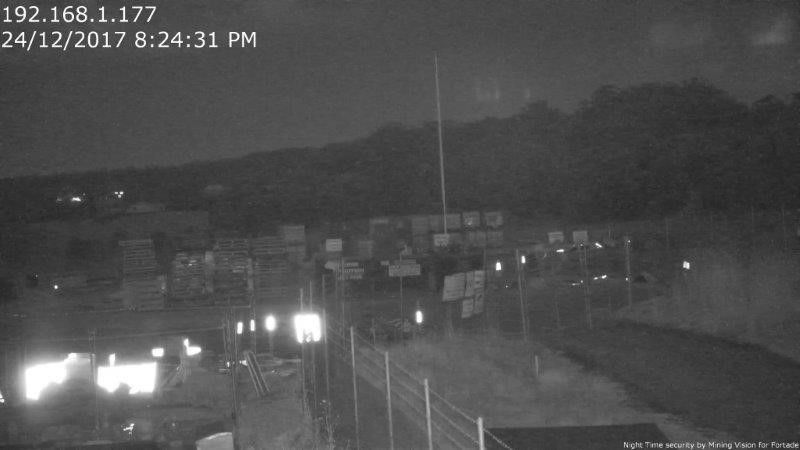

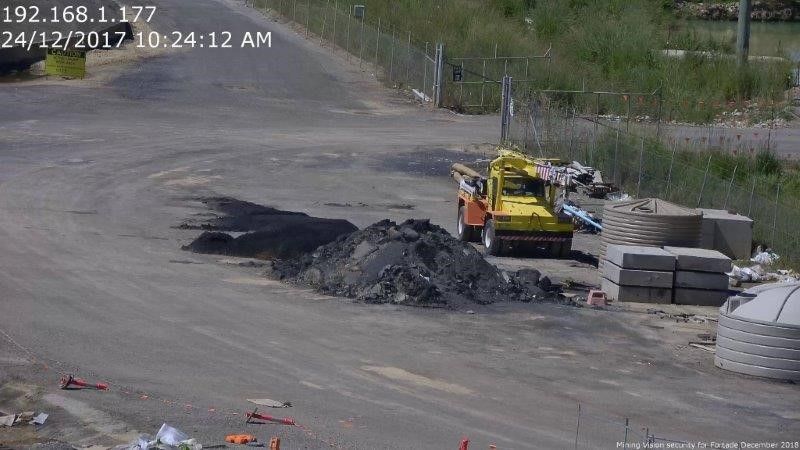

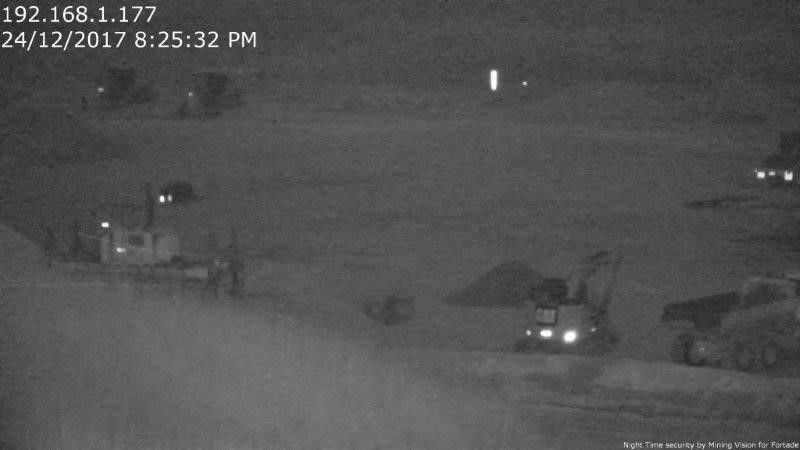

The images that are recorded are watermarked, can’t be tampered with and stand up in court. The Digifort software is capable of everything from licence plate recognition, facial recognition, and object removal recognition along with many other analytic programs.

Trailer Specification

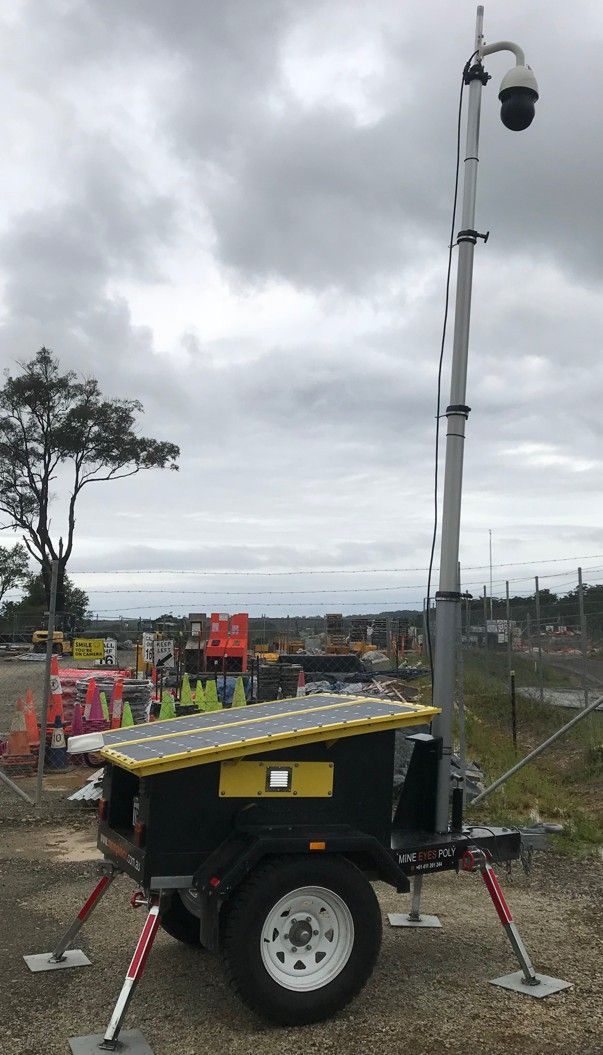

Poly Platforms Poly Trailers - Construction Site Configuration

• 1 x Poly Platforms Poly Trailer HDPE base
• 2 x Land Cruiser 6 Stud Wheels
• 1 x Galvanised Axel and Hubs

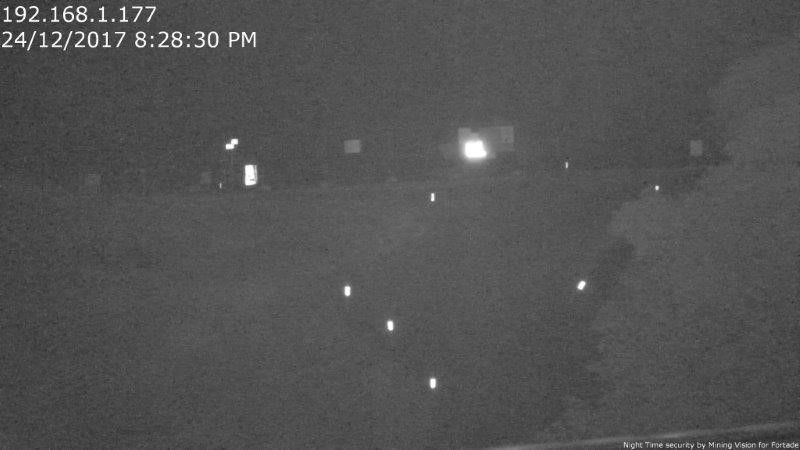

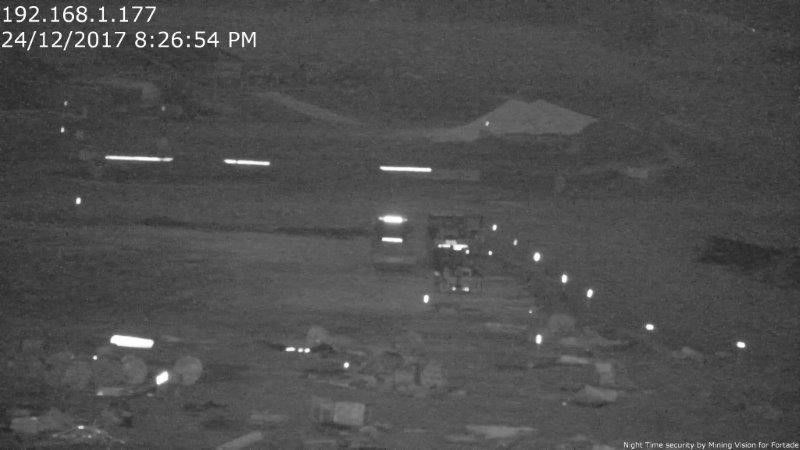

• 1 x Samsung PNP-9200RH PTZ 4K camera with 200m IR LEDs (spec sheet attached)
• 1 x camera Bracket
• 1 x Intel NUC Server 4TB of storage
• 2 or 4 x 180, 24V Flexible Solar Panels
• 4 x stabilisers with 300mm square feet
• 1 x tow hitch
• 1 x 5.6m keyed heavy duty pneumatic mast capable of up to 50kg payload
• 4 to 8 x 200Ah batteries
• 2 x Wheel Chocks
• 1 x Jockey Wheel
• 1 x Wireless 3G/4G M2M router, WiFi 2.4Ghz and GPS with external 5 in 1 outdoor Antenna
• 2 x circuit breakers
• 1 x MPPT 40 Amp solar regulator networked
• 1 x Industrial POE switch
• 1 x Reflective Marking (as per image at right)
• 1 x Networked relay switch to power down devices remotely when not required
• Road registered, ready to drive away



Extras

Contact us for a quotation based on your requirements including any of the following:

• Weather Station
• Thermal Vision PTZ
• Fixed covert camera
• Fixed IR 4MP camera

Poly Platforms Poly Trailers for Emergency Response

Poly Platforms Poly Trailers for Mining Applications

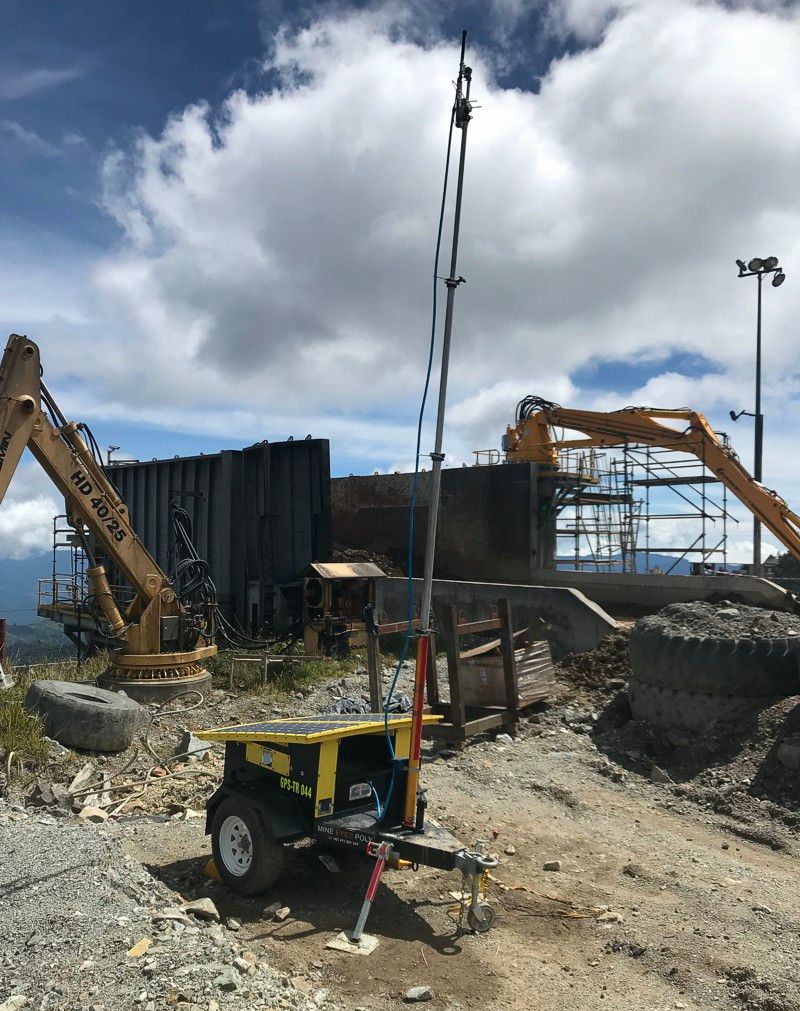

Poly Platforms Poly Trailers are fully fitted out to your mines specifications and requirements so once they arrive onsite they are ready for depolyment within hours. The standard Pneumatic mast is 5.6m tall and can handle a 15 kilo payload with many optional extras availabe. All trailers come equiped with adequate power (400Ah @ 24V) to run your wireless and camera requirements.

Trailer Specification

Poly Platforms Poly Trailers - Mine Site Configuration

• 1 x Poly Platforms Poly Trailer HDPE base
• 2 x Land Cruiser 6 Stud Wheels
• 1 x Galvanised Axel and Hubs
• 2 x 180, 24V Flexible Solar Panels
• 1 x Morningstar MPPT 30 Amp solar regulator networked
• 1 x 5.6m Pneumatic  Mast (15kilo pay load)
• 2 x Ubiqiti AP's & Antennas of your choice
• 1 x Ubiquiti POE switch
• 4 x 200Ah 12V Deep Cycle Gel batteries
• 4 x circuit breakers
• 4 x stabilisers with 300mm square feet
• 1 x tow hitch of choice
• 2 x Wheel Chocks
• 1 x Jockey Wheel
• 1 x Reflective Marking



Extras

• Weather Station
• Thermal Vision PTZ
• Fixed covert camera
• Fixed IR 4MP camera
• 1 x Samsung PNP-9200RH PTZ 4K camera with 200m IR LEDs
• 1 x Samsung SNP-6200RH PTZ 2mp camera with 150 Ir LEDs
• 1 x camera Bracket with 3 x mast eyelets & 1 x mats stabiliser
• 1 x 5m keyed heavy duty pneumatic mast with cable brackets
• 1 x Wireless 3G/4G M2M router, WiFi 2.4Ghz and GPS with external 5 in 1 outdoor Antenna
• 1 x Industrial POE switch
• 1 x Networked relay switch to power down devices remotely when not required
• Road registered if required

Poly Platforms Poly Trailers for Complete Security Solutions

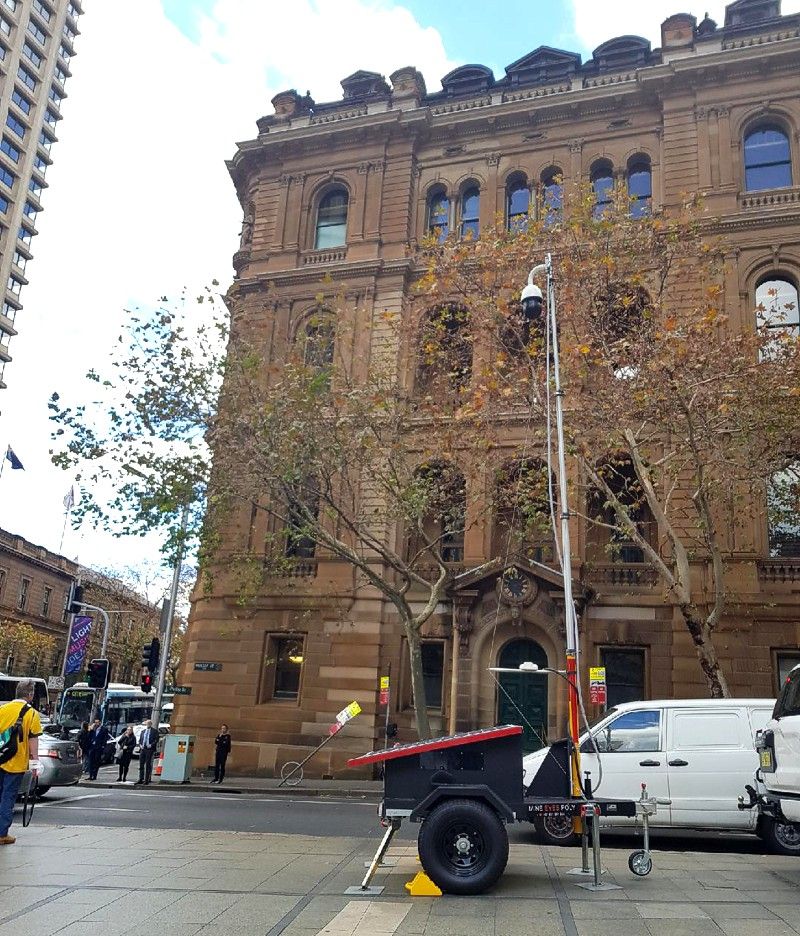

Poly Platforms Poly Trailers are extremely well suited to urban deployment as well. Offering agile, enhanced security networking and camera vision that can be rapidly deployed and reconfigured to support a wide range of scenarios.

Below is a typical full trailer configuration.

Trailer Specification

Poly Platforms Poly Trailers - Complete Configuration

• 1 x Poly Platforms Poly Trailer HDPE base
• 2 x Land Cruiser 6 Stud Wheels
• 1 x Galvanised Axel and Hubs
• 1 x Samsung PNP-9200RH PTZ 4K camera with 200m IR LEDs (spec sheet attached)
• 1 x camera Bracket
• 1 x Intel NUC Server 4TB of storage
• 2 x 180, 24V Flexible Solar Panels
• 4 x stabilisers with 300mm square feet
• 1 x tow hitch
• 1 x 5m keyed heavy duty pneumatic mast with cable brackets
• 4 x 200Ah batteries
• 2 x Wheel Chocks
• 1 x Jockey Wheel
• 1 x Wireless 3G/4G M2M router, WiFi 2.4Ghz and GPS with external 5 in 1 outdoor Antenna
• 2 x circuit breakers
• 1 x MPPT 40 Amp solar regulator networked
• 1 x Industrial POE switch
• 1 x Reflective Marking (as per image at right)
• 1 x Networked relay switch to power down devices remotely when not required
• Road registered, ready to drive away



Extras

Contact us for a quotation based on your requirements including any of the following:

• Weather Station
• Thermal Vision PTZ
• Fixed covert camera
• Fixed IR 4MP camera
